Concrete Mixer Truck

I. Brief Introduction

The HONGDA truck-mounted concrete mixer is independently developed by SHANDONG HONGDA GROUP on the basis of absorbing advanced domestic and foreign technologies. The product is mainly used for mixing and transporting concrete mixture between long distances. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed. The HONGDA series of truck-mounted concrete mixers can be divided into various models, such as 6m³, 8m³, 9m³, 10m³, 12m³,14m³ and 16m³, which can be matched with any special domestic and foreign chassis according to customers’ choices. The driving system of the mixing drum adopts the closed-type hydraulic system pump, motor and reducer which are imported from the US and Germany with original packaging. The necessary hydraulic accessories such as the oil tank, radiator, filter and rubber hose connector are all imported parts. All this ensures the hydraulic system a long service life. The mixing drum body and the double-logarithmic variation-parameter helical vanes are all made of fine-grain abrasion-resistant steel plates specially used for the B520JJ mixing drum made by Shanghai Baosteel Company. All the quick-wearing parts like the feed hopper and discharge hopper chutes which have much contact with concrete are also armored with abrasion-resistant steel plates, which correspondingly ensure the product a rather long service life. Not only are many mixing arms designed in the mixing drum, but also square and round holes are scientifically arranged in the mixing vanes. This design has realized the actual three-dimensional mixing of concrete in the mixing drum, with discharge surplus close to zero and concrete eduction greatly avoided. The moveable discharge chute can be locked at 4 different positions for discharge operations in different directions. The upper part of the truck adopts the shot blasting and baking finish technology. While elegant and pleasing in design, the truck-mounted mixer shows many advantages such as stable and reliable slewing, speedy discharge, low surplus rate, handy operation and long service life.

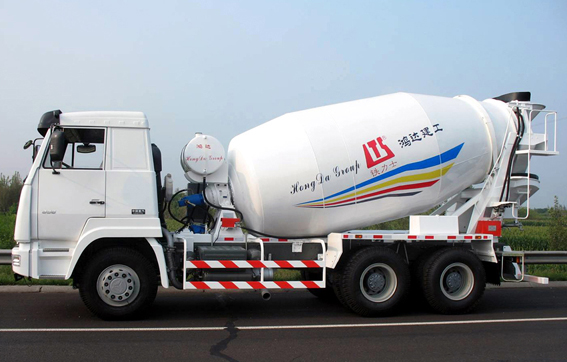

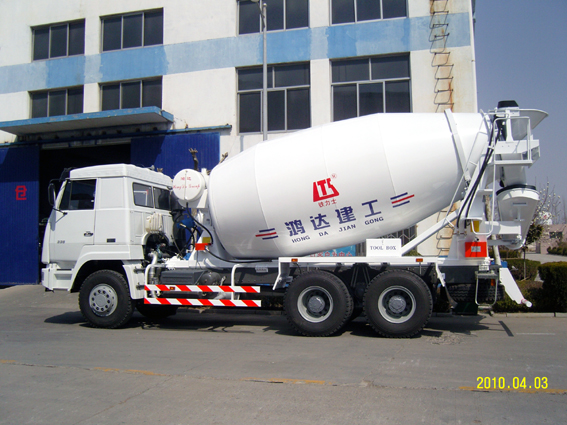

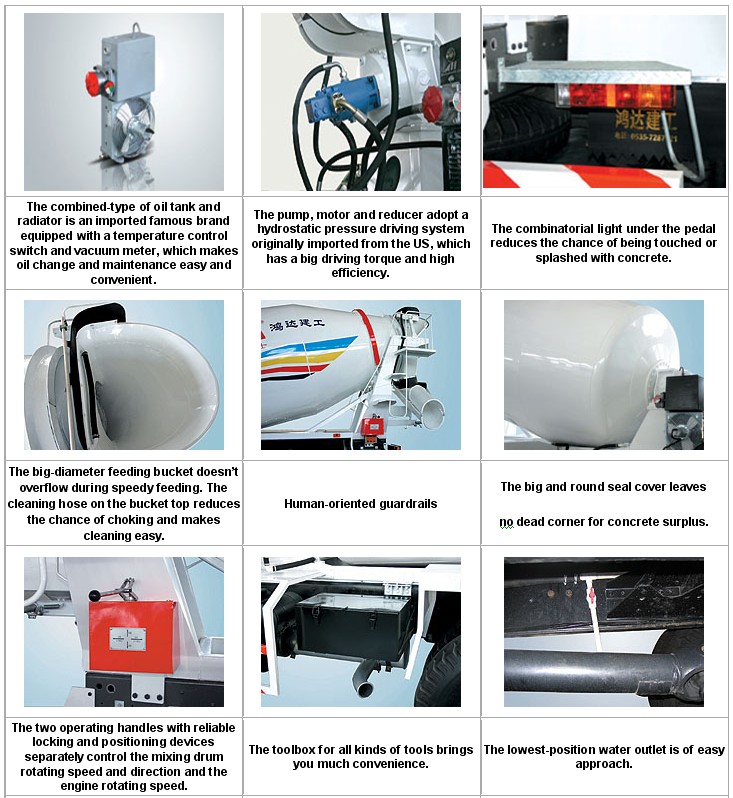

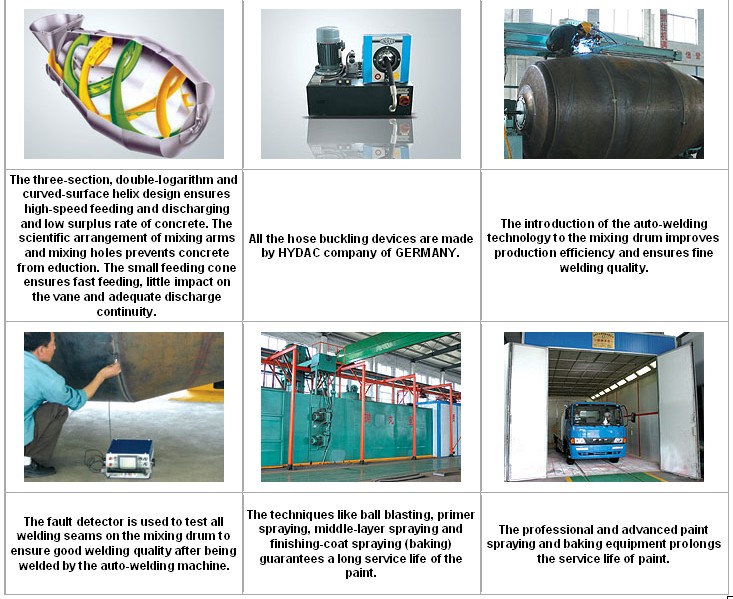

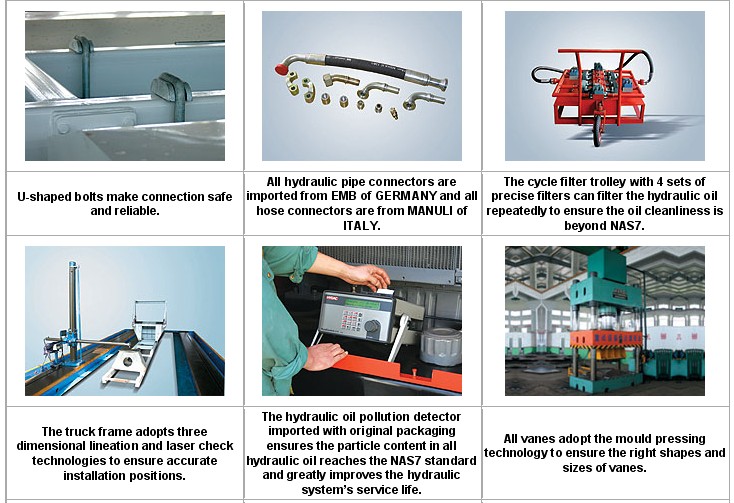

II. Relevant Pictures

III. Main Technical Parameters

6m³Mixer Truck

Model		HDT5257GJB1
Whole Vehicle Performance & Parameters	Chassis	STEYR KING ZZ1256N3246C
	Curb Weight (Kg)	12600
	Total Vehicle Weight (Kg)	25000
	Outline Dimension(LBH) (mm)	785024903730
	Wheelbase (mm)	3225+1350
	Front Overhang (mm)	1562
	Rear Overhang (mm)	1720
	Min. Clearance Above Ground (mm)	297
	Max. Traveling Speed (km/h)	75
	Min. Turning Diameter (M)	16
	Oil Consumption per 100 km (under limited conditions)	≤32
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)
	Gear Box	SINOTRUCK HW18709
	Driving Type	6*4
	Steering Mechanism	ZF8098
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00(R)-20
Engine Parameters	Model	WD615.95(E);WD615.96(E)
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Emission Standard	Euro III
	Discharge Capacity (L)	9.726L
	Power (KW)	290HP, 336HP (2200r/min)
	Max Torque	1350 N.m (1100-1600r/min)
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m³)	9.96
	Max Mixing Cubage (m³)	6
	Feeding Speed (m³)	≥3
	Discharging Speed (≥m³)	≥1.5
	Leftover Rate	≤0.5%
	Max Rotating Speed (r/min)	14-16
	Mixing Drum Obliquity (°)	15
	Max Mixing Drum Diameter (mm)	φ2162
Driving System	Geometric Volume of Mixing Drum (m³)	Italy BONFILI-575
	Max Mixing Cubage (m³)	US EATON4623-552
	Feeding Speed (m³)	US EATON4633-045
	Discharging Speed (≥m³)	Germany AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)	260
Water Supply System	Water Supply Mode	Water Pump/ Pneumatic Pump

8m³Mixer Truck

Model		ZZ5256GJBM3246C (8290)	ZZ5257GJBM3247C (8290)
Model		HDT5257GJB (8336)	ZZ5257GJBN3247C (8336)
Whole Vehicle Performance & Parameters	Chassis	STEYR KING	HOWO
	Curb Weight (Kg)	12600	13500
	Total Vehicle Weight (Kg)	25000	25000
	Outline Dimension(LBH) (mm)	855524903800	871524963800
	Wheelbase (mm)	3225+1350	3225+1350
	Front Overhang (mm)	1562	1500
	Rear Overhang (mm)	2419	2615
	Min. Clearance Above Ground (mm)	297	314
	Max. Traveling Speed (km/h)	75	90
	Min. Turning Diameter (M)	17.3	17.3
	Oil Consumption per 100 km (under limited conditions)	≤25	≤25
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)	Dry Single Disc Clutch (φ430)
	Gear Box	SINOTRUCK HW18709	SINOTRUCK HW18709
	Driving Type	6*4	6*4
	Steering Mechanism	ZF8098	ZF8098
	Service Brake	Dual-circuit Air Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake	Engine Exhaust Brake
	Tyre	12.00(R)-20	12.00(R)-20
Engine Parameters	Model	WD615.95(E);WD615.96(E)	WD615.95(E);WD615.96(E)
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Emission Standard	Euro III	Euro III
	Discharge Capacity (L)	9.726L	9.726L
	Power (KW)	290HP, 336 HP(2200r/min)	290HP, 336 HP(2200r/min)
	Max Torque	1350 N.m(1100-1600r/min)	1350 N.m(1100-1600r/min)
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m³)	12.8	12.8
	Max Mixing Cubage (m³)	8-8.8	8-8.8
	Feeding Speed (m³)	≥3	≥3
	Discharging Speed (≥m³)	≥1.5	≥1.5
	Leftover Rate	≤0.5%	≤0.5%
	Max Rotating Speed (r/min)	14-16	14-16
	Mixing Drum Obliquity (°)	15	15
	Max Mixing Drum Diameter (mm)	φ2162	φ2162
Driving System	Speed Reducer	Italian BONFILI-577L	Italian BONFILI-577L
	Hydraulic Pump	US EATON5423-518	US EATON5423-518
	Hydraulic Motor	US EATON4633-045	US EATON4633-045
	Radiator	German AKG with Vacuum Meter	German AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)	260	260
Water Supply System	Water Supply Mode	Water Pump; Pneumatic Pump	Water Pump; Pneumatic Pump

9m³Mixer Truck

Model		ZZ5256GJBM3846C (9290)	ZZ5257GJBM3847C (9290)
Model		HDT5258GJB (9336)	HDT5259GJB (9336)
Whole Vehicle Performance & Parameters	Chassis	STEYR King	HOWO
	Curb Weight (Kg)	13000	13220
	Total Vehicle Weight (Kg)	25000	25000
	Outline Dimension(LBH) (mm)	920024903800	905424963750
	Wheelbase (mm)	3800+1350	3825+1350
	Front Overhang (mm)	1560	1500
	Rear Overhang (mm)	2450	2375
	Min. Clearance Above Ground (mm)	314	314
	Max. Traveling Speed (km/h)	75	90
	Min. Turning Diameter (M)	19.6	19.3
	Oil Consumption per 100 km (under limited conditions)	≤25	≤25
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)	Dry Single Disc Clutch (φ430)
	Gear Box	SINOTRUCK HW18709	SINOTRUCK HW18709
	Driving Type	6*4	6*4
	Steering Mechanism	ZF8098	ZF8098
	Service Brake	Dual-circuit Air Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake	Engine Exhaust Brake
	Tyre	12.00(R)-20	12.00(R)-20
Engine Parameters	Model	WD615.95(E)	WD615.95(E)
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Emission Standard	China III, Euro III	China III, Euro III
	Max Power (KW)	290HP, 336 HP(2200r/min)	290HP, 336 HP(2200r/min)
	Max Torque	1350 N.m	1350 N.m
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m³)	14.7	14.7
	Max Mixing Cubage (m³)	9-10	9-10
	Feeding Speed (m³)	≥3.5	≥3.5
	Discharging Speed (≥m³)	≥1.5	≥1.5
	Leftover Rate	Nearly Zero	Nearly Zero
	Max Rotating Speed (r/min)	14-16	14-16
	Mixing Drum Obliquity (°)	13.5	13.5
	Max Mixing Drum Diameter (mm)	φ2162	φ2162
Driving System	Speed Reducer	Italian BONFILI-577L	Italian BONFILI-577L
	Hydraulic Pump	US EATON5423-518	US EATON5423-518
	Hydraulic Motor	US EATON5433-138	US EATON5433-138
	Radiator	German AKG with Vacuum Meter	German AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)	260	260
Water Supply System	Water Supply Mode	Water Pump; Pneumatic Pump	Water Pump; Pneumatic Pump

10m³Mixer Truck

Model		HDT5256GJB1	HDT5256GJB
Overall Length	mm	9800	9880
Overall Width	Mm	2496	2496
Overall Height	Mm	3880	3920
Chassis Model		STAR-STYER ZZ1256N4046C1	HOWO ZZ1257N4048W
Total Vehicle Weight	Kg	25000	25000
Curb Weight	Kg	15000	15000
Wheelbase	mm	4000+1350	4025+1350
Front Tread	mm	1939/1958	2022/2041
Rear Tread	mm	1800/1830	1830
Tyre Type		11.00-20/12．00-20	11.00-20/12．00-20
Front Overhang	mm	1560	1500
Rear Overhang	mm	2890	2980
Minimum Turning Diameter	M	≤19.3	≤20
Max Traveling Speed	Km/h	90	86
Steering Mechanism		ZF8098	ZF8098
Oil Consumption per 100 km (under limited conditions)	L	36	36
Engine Model		WD615.95(E),WD615.96(E)	P11C-UH,WD615.95
Engine Type		Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine	Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
Cylinder Arrangement		6 Cylinders in Line	6 Cylinders in Line
Engine Power /Rotating Speed	HP/(r/min)	336/2200, 375/2200	336/2200, 375/2200
Max Engine Torque	N．M	1350/ (1100-1600), 1500/ (1100-1600)	1420/1100, 1400/ (1300-1600)
Geometric Volume of Mixing Drum	M³	16.8	16.8
Mixing Cubage	M³	10	10
Mixing Drum Obliquity	°	12	12
Drum Rotating Speed	r/min	0-14	0-14
Feeding Speed	M³/min	≥3.5	≥3.5
Discharging Speed	M³/min	≥3	≥3
Slump	mm	100-230	100-230
Leftover Rate	%	Nearly Zero	Nearly Zero
Water Tank Capacity	L	260/400	260/400
Water Supply Mode		Water Pump (standard configuration); Pneumatic Pump (self-chosen configuration)	Water Pump (standard configuration); Pneumatic Pump (self-chosen configuration)

12m³Mixer Truck

Model		HDT5256GJB (12336)	HDT5256GJB1 (12336)
Model		HDT5256GJB (12375)	HDT5256GJB1 (12375)
Whole Vehicle Performance & Parameters	Chassis	HOWO	STEYR KING
	Curb Weight (Kg)	15000	15000
	Total Vehicle Weight (Kg)	25000	25000
	Outline Dimension(LBH) (mm)	988024963920	980024963880
	Wheelbase (mm)	4025+1350	4000+1350
	Front Overhang (mm)	1500	1560
	Rear Overhang (mm)	2980	2890
	Min. Clearance Above Ground(mm)	245	296
	Max. Traveling Speed (km/h)	86	90
	Min. Turning Diameter (M)	20	19.3
	Oil Consumption per 100 km (under limited conditions)	≤25	≤25
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)	Dry Single Disc Clutch (φ430)
	Gear Box	ZF5S-150GB	HW18709
	Driving Type	6*4	6*4
	Steering Mechanism	ZF8098	ZF8098
	Service Brake	Dual-circuit Air Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake	Engine Exhaust Brake
	Tyre	12.00(R)-20	12.00(R)-20
Engine Parameters	Model	P11C-UH;WD615.95	WD615.95,WD615.95E,WD615.96,WD615.96E
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine or EGR	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine or EGR
	Emission Standard	China III, Euro III	China III, Euro III
	Power (KW)	336HP, 375HP (2200r/min)	336HP, 375HP (2200r/min)
	Max Torque	1420,1350 N.m	1420,1350 N.m
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m³)	18.5	18.5
	Max Mixing Cubage (m³)	12-13	12-13
	Feeding Speed (m³)	≥3.5	≥3.5
	Discharging Speed (≥m³)	≥2.5	≥2.5
	Leftover Rate	Nearly Zero	Nearly Zero
	Max Rotating Speed (r/min)	14-16	14-16
	Mixing Drum Obliquity (°)	12	12
	Max Mixing Drum Diameter (mm)	φ2412	φ2412
Driving System	Speed Reducer	Italian BONFILI-580	Italian BONFILI-580
	Hydraulic Pump	US EATON6423-279	US EATON6423-279
	Hydraulic Motor	US EATON6433-042	US EATON6433-042
	Radiator	German AKG with Vacuum Meter	German AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)	260	260
Water Supply System	Water Supply Mode	Water Pump; Pneumatic Pump	Water Pump; Pneumatic Pump

14m³ Concrete Mixer Truck

Items	Unit	Parameters
Model		HDT5313GJB
Total Length	mm	10850
Total Width	Mm	2496
Total Height	Mm	3980
Chassis		HOWO ZZ1317N3667C1
Total Vehicle Weight (Standard)	Kg	31000
Curb Weight	Kg	16600
Wheelbase	mm	1800+3600+1350
Front Tread	mm	2022/2041
Rear Tread	mm	1830
Tyre Type		11.00-20/12．00-20
Front Overhang (mm)	mm	1500
Rear Overhang (mm)	mm	2600
Min. Turning Diameter (M)	M	≤23
Max. Traveling Speed (km/h)	Km/h	90
Steering Mechanism		ZF8098
Oil Consumption per 100 km (under limited conditions)	L	38
Engine Model		WD615.95(E),WD615.96(E)
Engine Type		In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine or EGR
Cylinders and Arrangement		In-line 6-cylinder
Max Power/Rotation	KW/(r/min)	247/2200， 276/2200
Max PTO Torque	N．M	1350/（1100-1600），1500/（1100-1600）
Geometric Volume of Mixing Drum (m³)	M³	20.1
Max Mixing Cubage (m³)	M³	14
Mixing Drum Obliquity	°	10
Mixing Drum Rotating Speed	r/min	0-14
Feeding Speed (m³)	M³/min	≥3.5
Discharging Speed (≥m³)	M³/min	≥3
Slump	mm	100-230
Leftover Rate	%	Nearly Zero
Water Tank Capacity (L)	L	260/400
Max Mixing Drum Diameter (mm)		Water Pump; Pneumatic Pump

16m³Mixer Truck

Whole Vehicle Performance & Parameters	Items	Unit	Parameters
	Items	Unit	*16m³(HOWO-84 Chassis)**
	Model		HDT5313GJB (16375)
	Total Length	mm	10850
	Total Width	mm	2496
	Total Height	mm	3980
	Chassis Model		HOWO-ZZ1317N3667C1
	Total Vehicle Weight (Standard)	Kg	31000
	Curb Weight	Kg	16600
	Wheelbase	mm	1800+3600+1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Front Overhang (mm)	mm	1500
	Rear Overhang (mm)	mm	2600
	Min. Turning Diameter (M)	m	11.5
	Max. Traveling Speed (km/h)	Km/h	90
	Steering Mechanism		ZF8098(German)
	Gear Box		HW18709
Engine	Oil Consumption per 100 km (under limited conditions)	L	≤31
	Model		WD615.95, WD615.96, WD615.95E, WD615.96E
	Type		In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Max Power	KW	375HP (2200r/min)
	Max Torque	N.m	1350;1500
	Max PTO Torque	N.m	600(1100-1400r/min)
	Emission Standard		China III, Euro III
Working Device	Geometric Volume of Mixing Drum (m³)	M³	24.1M³
	Max Mixing Cubage (m³)	M³	16
	Mixing Drum Obliquity	°	10°
	Mixing Drum Rotating Speed	r/min	0-14
	Feeding Speed (m³)	M³/min	≥3.5
	Discharging Speed (≥m³)	M³/min	≥1.5
	Slump	mm	100～230
	Leftover Rate	%	Nearly Zero
	Water Tank Capacity (L)	L	260
	Max Mixing Drum Diameter (mm)	mm	φ2412mm
	Water Supply Mode		Water Pump; Pneumatic Pump

Products

Products

SHANDONG HONGDA CONSTRUCTION MACHINERY (GROUP) CO., LTD. ®Copyright 2007 All Rights Reserved.
