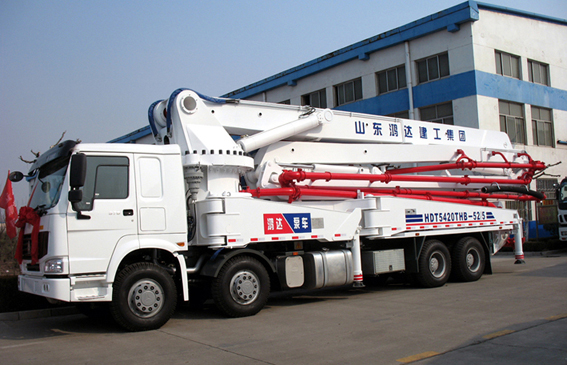

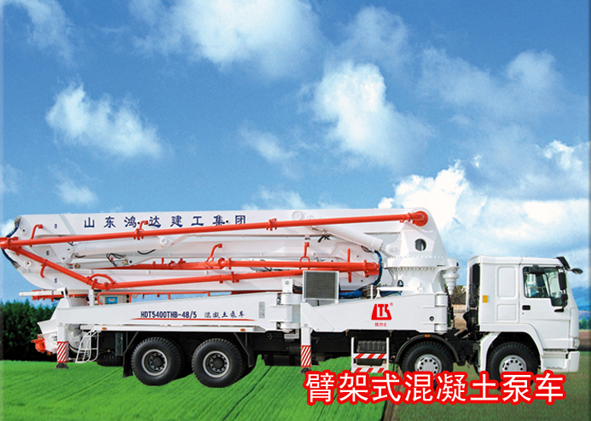

Concrete Pump Truck

I. Brief Introduction:

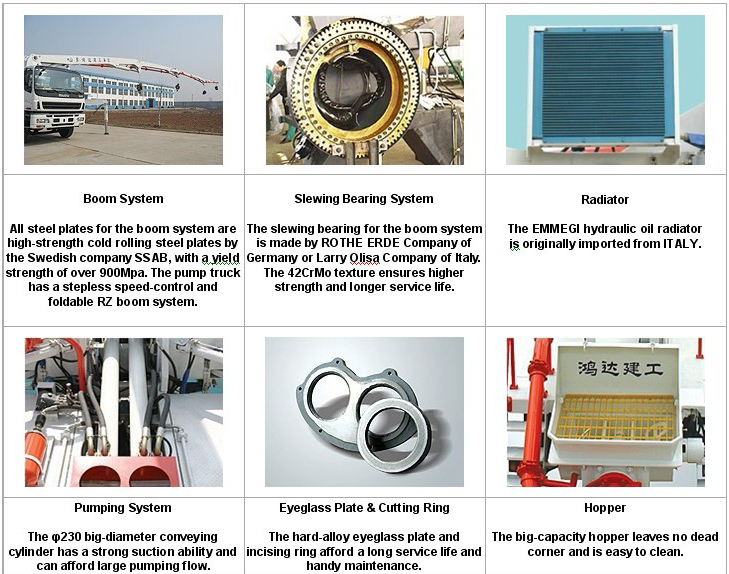

The Hongda Boom-type Concrete Pump Truck (Truck-mounted Concrete Pump with Foldable Booms) is developed by Hongda Group on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life. Meantime, Hongda Group optimized the design of the hydraulic system, adopted the latest free fluid technique and greatly lessened the impact of pumping commutation on the distributing boom. In the boom structure optimization and the hydraulic system design, Hongda Group has obtained many patents. The consummate control of product quality, perfect techniques of product manufacturing and strict procedures of quality inspection make the HONGDA Pump Truck a leading product in China and an advanced product in the world. All the steel plates for the boom system are high-strength cold rolling steel plates made by the Swedish company SSAB. The yield strength of the plates exceeds 900Mpa, which ensures that the boom system has high strength and light weight. The boom system’s distributing pipe, landing legs, oil tank and so on have all received 100% stress-removing treatment after welding. Every welding seam has passed the 100% undamage and crack detection or X-ray radial check to avoid any tiny defects and to make the machine more enduring.

The slewing bearing for the boom system is made by ROTHE ERDE Company from Germany or Larry Olisa Company from Italy. The 42CrMo texture of the slewing bearing ensures its higher strength and longer service life.

Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of HONGDA Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:

l The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.

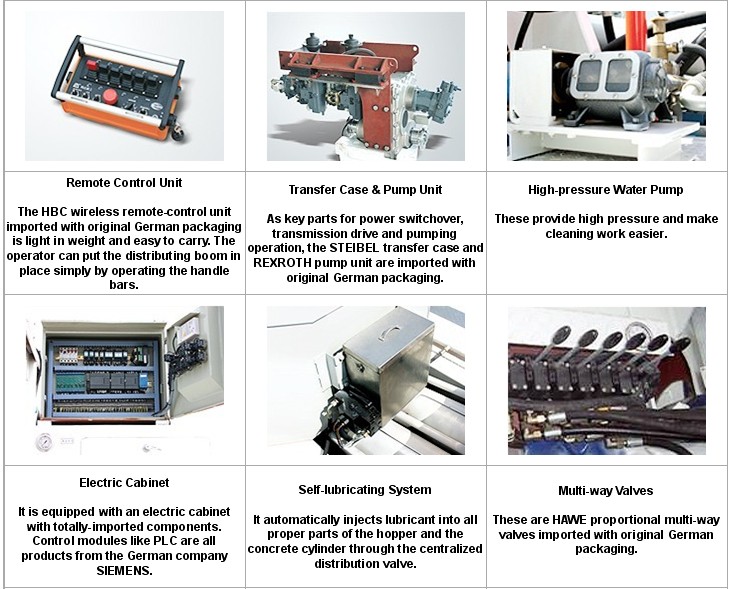

l The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.

l The pumping capacity can be regulated through the stepless control device.

l The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.

l The slewing speed of the boom can be regulated through the stepless control device.

l It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.

l Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging；

l Equipped with slewing reducers and motors imported with original packaging；

l Equipped with HAWE proportional multi-way valves imported with original German packaging；

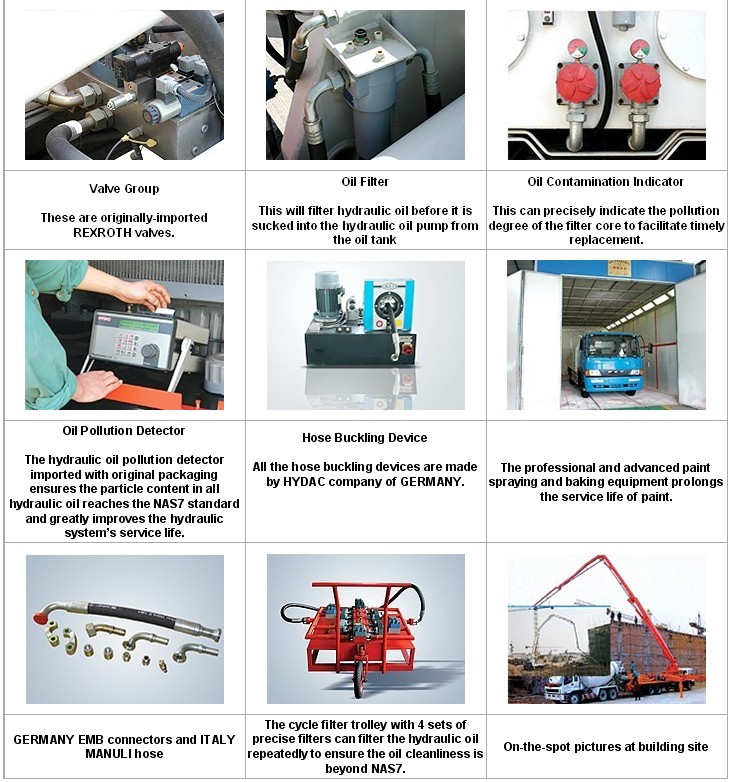

l Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies；

l It is equipped with an electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.

II. Features of the Hydraulic System:

l The closed free fluid power system formed by double pump confluence has the features of large output, small depreciation and smooth commutation with no impact.

l The intelligent control system makes the driving oil flow incessantly and directly into the driving oil cylinder without any loss.

l As there are no fussy middle commutation control valves, the commutation impact is reduced and excessively high oil temperature is avoided. Meanwhile, it makes maintenance easier.

l Compared with the open system with a large oil tank, the closed system needs a small oil tank. The oil in the tank flows gently, which reduces the chance of emulsification.

l The unique buffering technology can lower the system’s high-pressure peak value. Even at the time of high output, the distributing boom vibrates little and the tail pipe remains stable.

l The concrete output can be regulated through the electronic proportional variable adjustment according to your actual needs.

III. Main Technical Parameters

Main Technical Parameters of 37m/39m-boom Concrete Pump Trucks

Items		Unit	Parameters
Items		Unit	HDT5281THB-37/4	HDT5291THB-37/4	HDT5281THB-39/4	HDT5291THB-39/4
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	125	125	125	125
	Pumping Capacity Index	Mpa.m3/h	586	586	586	586
	Theoretical Pumping Pressure	Mpa	8.5	8.5	8.5	8.5
	Hopper Capacity	L	700	700	700	700
	Feeding Height	mm	1370	1370	1370	1370
	Distributing Valve Form		S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve
	Max. Distributing Radius	m	32.6	32.6	34.7	34.7
	Max. Distributing Height	m	36.6	36.6	38.7	38.7
	Max. Distributing Depth	m	25.5	25.5	27	27
	Height of Distributing Boom When Stretched	mm	8450	8450	8830	8830
	Distance between Front Landing Legs	mm	7058	7058	6800	6800
	Distance between Rear Landing Legs	mm	6848	6848	7000	7000
	Distance between Front and Rear Landing Legs	mm	6790	6790	7432	7432
	Diameter of Conveying Pipe	mm	125	125	125	125
	Length of Tail Hose	m	4	4	4	4
	Rotary Range of Distributing Boom		370°	365°	365°	365°
	Number of Boom Sections		4	4	4	4
	Rotary Angle of Each Boom Section	°	92/180/180/270	92/180/180/270	91/180/180/180/270	91/180/180/180/270
	Close-control Distance	m	33	33	33	33
	Remote-control Distance	m	200	200	200	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	85	90	85	90
	Min. Turning Radius	mm	8800	8800	8800	8800
	Brake Distance	m	7	7	7	7
	Approach Angle	°	16	16	16	16
	Departure Angle	°	11	11	11	11
	Chassis Model		ISUZU CYZ51Q	HOWO ZZ5307N4647C	ISUZU CYZ51Q	HOWO ZZ5307N4647C
	Wheel Base between the First and the Second Axle	mm	4595	4600	4595	4600
	Wheel Base between the Second and the Third Axle	mm	1310	1350	1310	1350
	Front Tread	mm	2065	2022	2065	2022
	Rear Tread	mm	1850	1830	1850	1830
	Max. Engine Power	kw	265(1800r/min)	247(2200r/min)	265(1800r/min)	247(2200r/min)
	Max Engine Torque	n.m	1422(1100r/min)	1350(1100-1600r/min)	1422(1100r/min)	1350(1100-1600r/min)
	Max. Grade Ability	%	37	35	37	35
	Fuel Consumption Limit	L/100km	36.6	34	36.6	34
	Overall Dimension (L ×W× H)	mm	12000×2490×3800	12000×2490×3850	12500×2490×3950	12500×2490×3950
	Full-load Total Weight	kg	28000	29000	28000	29500

Main Technical Parameters of 42m/45m-boom Concrete Pump Trucks

Items		Unit	Parameters
Items		Unit	HDT5340THB-42/4	HDT5350THB-42/4	HDT5380THB-45/5	HDT5401THB-45/5
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	125	125	125	125
	Pumping Capacity Index	Mpa.m3/h	586	586	586	586
	Theoretical Pumping Pressure	Mpa	8.5	8.5	8.5	8.5
	Hopper Capacity	L	700	700	700	700
	Feeding Height	mm	1400	1400	1400	1400
	Distributing Valve Form		S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve
	Max. Distributing Radius	m	38	38	40.7	40.7
	Max. Distributing Height	m	41.8	41.8	44.7	44.7
	Max. Distributing Depth	m	29	29	31.3	31.3
	Height of Distributing Boom When Stretched	mm	8600	8600	8495	8495
	Distance between Front Landing Legs	mm	8820	8820	9550	9550
	Distance between Rear Landing Legs	mm	8500	8500	9550	9550
	Distance between Front and Rear Landing Legs	mm	8490	8490	9190	9190
	Diameter of Conveying Pipe	mm	125	125	125	125
	Length of Tail Hose	m	4	3	3	3
	Rotary Range of Distributing Boom		370°	365°	365°	365°
	Number of Boom Sections		4	4	5	5
	Rotary Angle of Each Boom Section	°	92/180/180/240	92/180/180/240	91/180/180/180/270	91/180/180/180/270
	Close-control Distance	m	33	33	33	33
	Remote-control Distance	m	200	200	200	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	85	85	85	80
	Min. Turning Radius	mm	11900	12100	11900	12100
	Brake Distance	m	10	10	10	10
	Approach Angle	°	16	16	16	16
	Departure Angle	°	11	11	11	11
	Chassis Model		ISUZU CYH51Y	HOWO ZZ5437S4667C	ISUZU CYH51Y	HOWO ZZ5437S4667C
	Wheel Base between the First and the Second Axle	mm	1850	1800	1850	1800
	Wheel Base between the Second and the Third Axle	mm	4605	4600	4605	4600
	Wheel Base between the Third and the Fourth Axle	mm	1310	1350	1310	1350
	Front Tread	mm	2065	2022	2065	2022
	Rear Tread	mm	1850	1830	1850	1830
	Max. Engine Power	kw	287(1800r/min)	275(2200r/min)	287(1800r/min)	275(2200r/min)
	Max Engine Torque	n.m	1863(1100r/min)	1500 /(1100~1600 r/min)	1863(1100r/min)	1500 /(1100~1600 r/min)
	Max. Grade Ability	%	37	37	35	35
	Fuel Consumption Limit	L/100km	38	38	40	40
	Overall Dimension (L ×W× H)	mm	13800×2490×3995	13650×2490×3960	13100×2500×3900	13300×2500×4000
	Full-load Total Weight	kg	34500	35000	38000	40000

Main Technical Parameters of 48m/52m-boom Concrete Pump Trucks

Items		Unit	Parameters
Items		Unit	HDT5380THB-48/5	HDT5401THB-48/5	HDT5420THB-52/5	HDT5420THB-52/5
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	125	125	125	125
	Pumping Capacity Index	Mpa.m3/h	586	586	586	586
	Theoretical Pumping Pressure	Mpa	8.5	8.5	8.5	8.5
	Hopper Capacity	L	700	700	700	700
	Feeding Height	mm	1400	1400	1400	1400
	Distributing Valve Form		S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve
	Max. Distributing Radius	m	43.7	43.7	47.8	47.8
	Max. Distributing Height	m	47.7	47.7	51.8	51.8
	Max. Distributing Depth	m	34.3	34.3	39.8	39.8
	Height of Distributing Boom When Stretched	mm	9065	9065	9400	9400
	Distance between Front Landing Legs	mm	9780	9780	10295	10295
	Distance between Rear Landing Legs	mm	9860	9860	10650	10650
	Distance between Front and Rear Landing Legs	mm	9470	9470	10310	10310
	Diameter of Conveying Pipe	mm	125	125	125	125
	Length of Tail Hose	m	3	3	3	3
	Rotary Range of Distributing Boom		365°	365°	365°	365°
	Number of Boom Sections		5	5	5	5
	Rotary Angle of Each Boom Section	°	91/180/180/180/270	91/180/180/180/270	90/180/180/180/270	90/180/180/180/270
	Close-control Distance	m	33	33	33	33
	Remote-control Distance	m	200	200	200	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	89	85	80	80
	Min. Turning Radius	mm	11900	12000	12500	12500
	Brake Distance	m	10	10	10	10
	Approach Angle	°	16	16	16	16
	Departure Angle	°	11	11	11	11
	Chassis Model		ISUZU CYH51Y	HOWO ZZ5437S4667C SINOTRUCK Engine	HOWO ZZ5437S5067C1 HINO Engine	HOWO ZZ5437S5067C1 SINOTRUCK Engine
	Wheel Base between the First and the Second Axle	mm	1850	1800	1800	1800
	Wheel Base between the Second and the Third Axle	mm	4605	4600	5000	5000
	Wheel Base between the Third and the Fourth Axle	mm	1310	1350	1350	1350
	Front Tread	mm	2065	2022	2022	2022
	Rear Tread	mm	1850	1830	1830	1830
	Max. Engine Power	kw	287(2200r/min)	275(2200r/min)	259(2100r/min)	275(2200r/min)
	Max Engine Torque	n.m	1863(1100r/min)	1500 /(1100~1600 r/min)	1460(1100r/min)	1500 /(1100~1600 r/min)
	Max. Grade Ability	%	37	37	37	37
	Fuel Consumption Limit	L/100km	38	40	38	40
	Overall Dimension (L ×W× H)	mm	13300×2500×4000	13300×2500×4000	13990×2500×4000	13990×2500×4000
	Full-load Total Weight	kg	38000	40000	42000	42000
