Brief Introduction to SC Series of Construction Elevators
The SC series of construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers.
This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers’ labor intensity.
 |
 |
 |

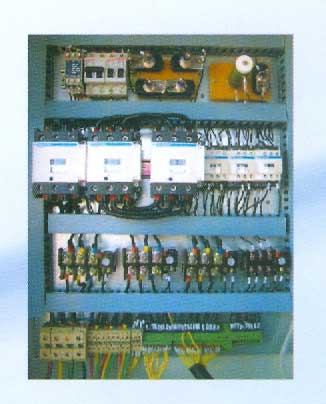

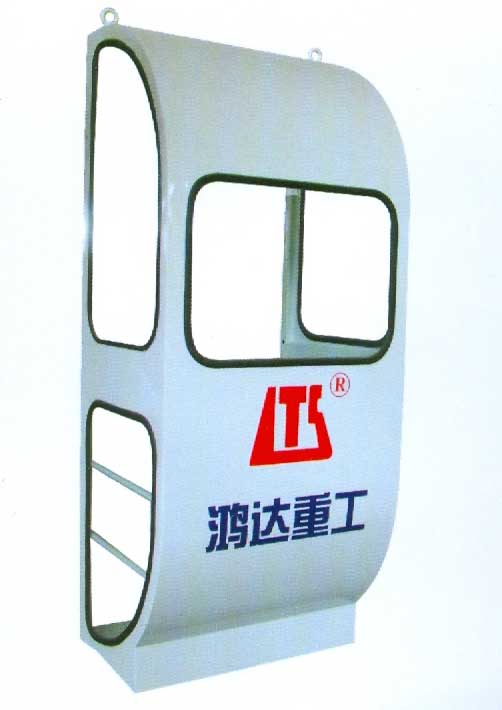

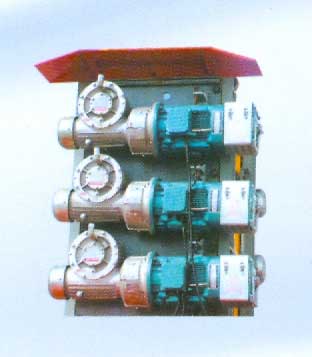

| Driver's Cab | Drive Mechanism | Dual Control System of Electric Control Cabinet in Cage |
 |
 |
 |

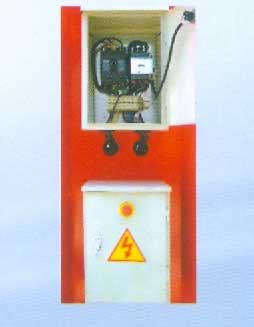

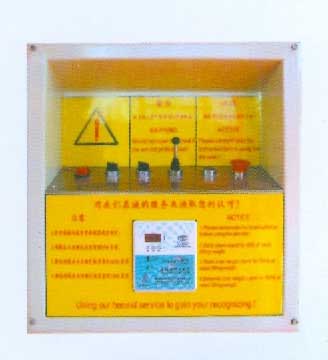

| Operating Panel | Electric Cabinet |

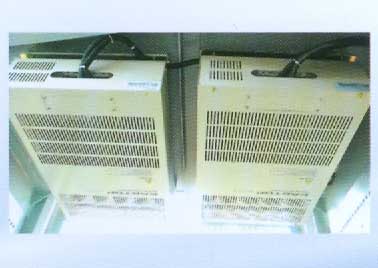

Resistance Box for Variable-frequency Elevator |
 |
 |
 |

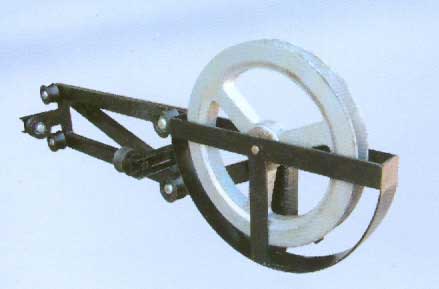

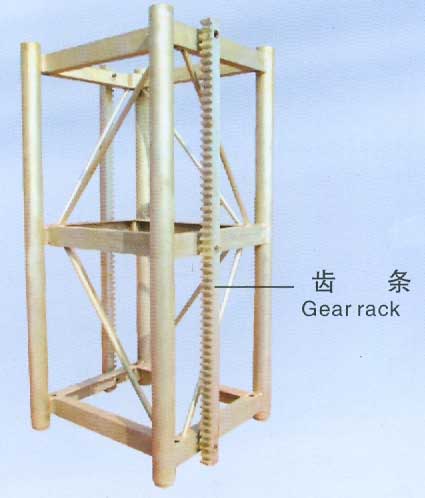

| Cable Pulley | Galvanized Mast Section |

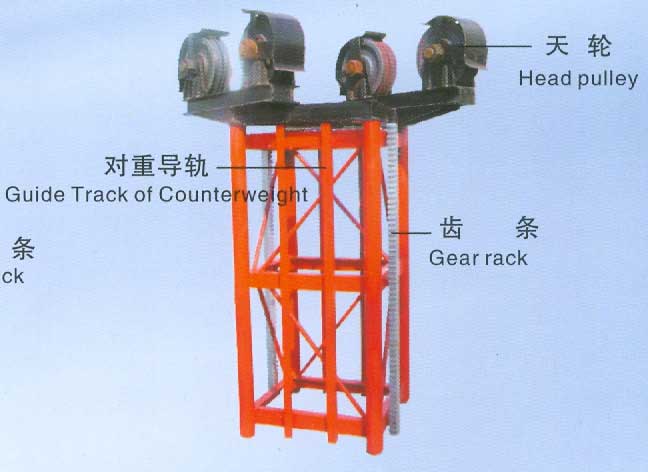

Mast Section with |
Elevator Mast Sections
Tilting Construction Elevator

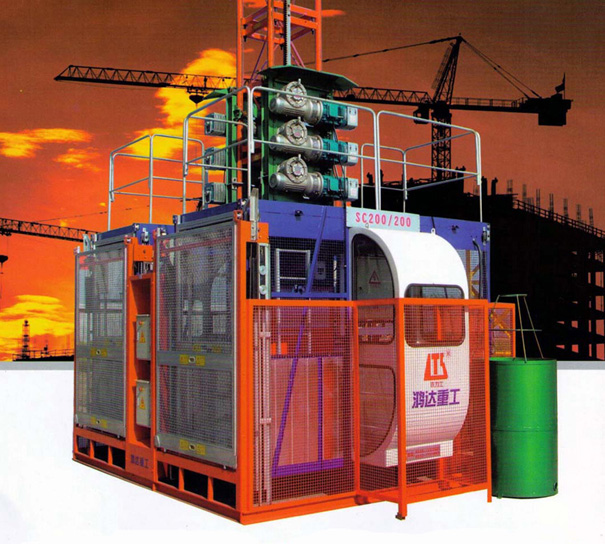

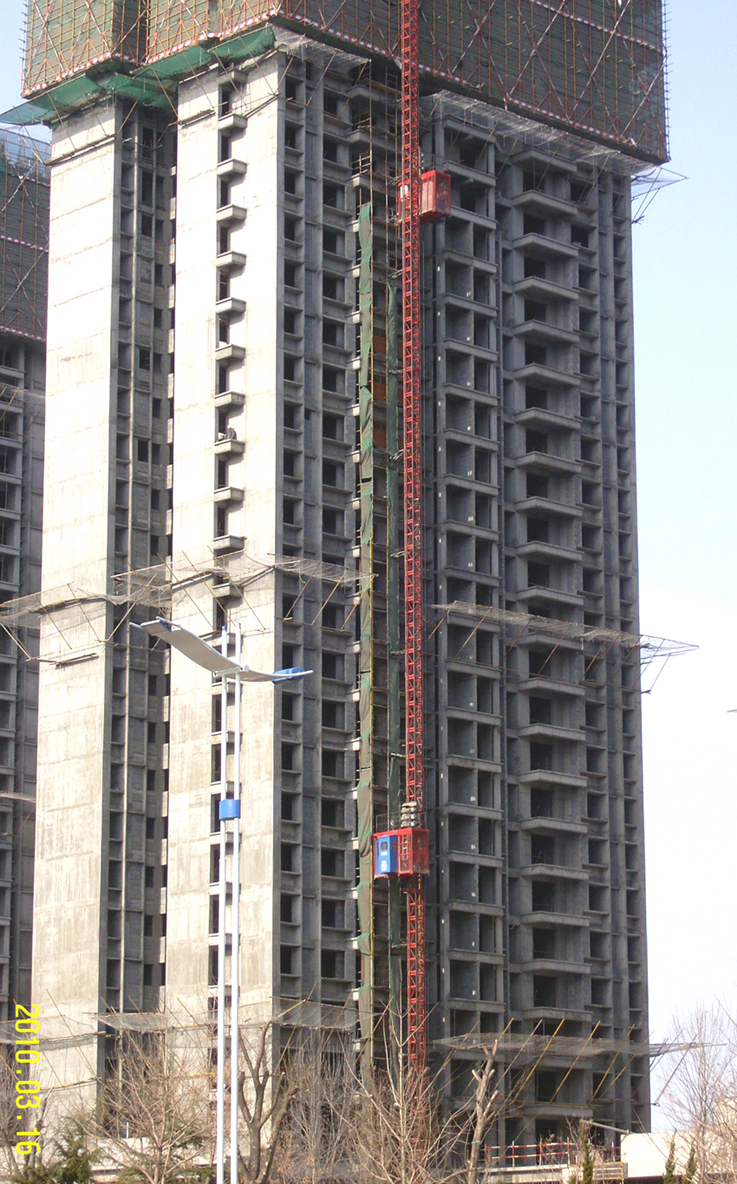

Hongda Construction Elevator at Construction Site
Main Technical Parameters of SC Series of Construction Elevators
|
Model |
SC100 |
SC100/100 |
SC200 |
SC200/200 |
SC200/200 |
SCD200/200 |
SCD200/200P |
SC200/200P |
|
Height (m) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Max Installation Height (m) |
200 |
200 |
200 |
200 |
200 |
200 |
250 |
250 |
|
Rated Loading Capacity (kg) |
1000 |
1000/1000 |
2000 |
2000/2000 |
2000/2000 |
2000/2000 |
2000/2000 |
2000/2000 |
|
Rated Lifting Speed (m/min) |
36 |
36 |
36 |
36 |
36 |
36 |
0-58 |
0-58 |
|
Rated Passenger Number |
12 |
12/12 |
16 |
16/16 |
16/16 |
16/16 |
16/16 |
16/16 |
|
Motor Power (kw) |
2*11 |
2*2*11 |
3*11 |
2*3*11 |
2*3*11 |
2*2*11 |
2*2*15 |
2*3*18.5 |
|
Inner Dimension of Cage (m) |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
3*1.3*2.2 |
|
|
124 |
148 |
124 |
148 |
148 |
165 |
165 |
148 |
|
|
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
|
800*800*1508 |
800*800*1508 |
800*800*1508 |
800*800*1508 |
800*800*1508 |
800*800*1508 |
800*800*1508 |
800*800*1508 |
|
Counterbalance Weight (kg) |
|
|
|
|
|
1000 |
1800 |
|
|
Rated Hanger Lifting Capacity (kg) |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
