The HONGDA concrete batcher is a kind of foreground dispensing equipment complementary to the concrete mixer. It uses a loader to load materials and a belt conveyor to feed and discharge materials. The weighing system adopts the technologies like electronic weighing, dispensing meter control and digital display, which can complete the dispensing procedure of multiple materials such as sand, cobble and cement according to customers’ proportioning plan. It has many advantages such as accurate weighing, high precision, high speed and simple operation.
Main Technical Parameters of Concrete Batchers
|
Model |
PLD800 |
PLD |
PLD1200 |
PLD |
PLD1200B |
HPD1200 |
HPD |
|
Batching Capacity |
40-48 |
40-48 |
60-72 |
60-72 |
60-72 |
60-72 |
60-72 |
|
Number of Storage Hoppers |
2 |
2 |
2 |
2 |
2 |
3 |
4 |
|
Capacity of Storage Hoppers |
2.6 |
2.6 |
3 |
3 |
3 |
3 |
2.5 |
|
Capacity of Weighing Hoppers |
0.8 |
0.8 |
1.2 |
1.2 |
1.2 |
2.2 |
0.8*2 |
|
Measuring Precision |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Measuring Range |
0~1500 |
0~1500 |
0~2000 |
0~2000 |
0~2000 |
0~2000 |
0~2000 |
|
Discharging Mode |
One-way |
Two-way, vertical |
One-way |
Twp-way |
Two-way, vertical |
One-way |
Two-way, vertical |
|
Total Weight |
2250 |
1760 |
3300 |
3820 |
3820 |
5600 |
6000 |
|
Outline Dimension (mm) |
5460*1580*2720 |
5460*1580*3320 |
5460*1855*2740 |
5460*1855*2740 |
5460*1855*3510 |
8100*2120*2780 |
8100*2120*3840 |

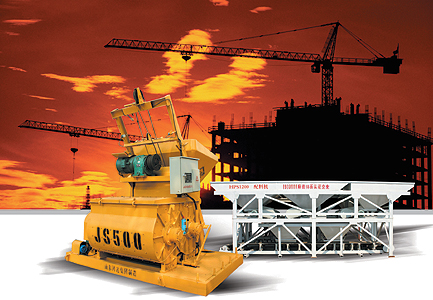

The HONGDA concrete mixer is rational in overall design, optimized in performance and convenient for operation and maintenance. It is suitable for all kinds of large, medium and small factories of prefabricated parts as well as industrial and civil construction units to mix all kinds of mortar and dry concrete, plastic concrete, fluid concrete and lightweight aggregate concrete.
Main Technical Parameters of Concrete Mixers
|
Model |
JZM350 |
JS350 |
JS500 |
JS750 |
JS1000B |
|
Discharging Capacity (L) |
350 |
350 |
500 |
750 |
100 |
|
Theoretical Productivity (m3/h) |
15 |
17.5-21 |
25-30 |
37.5 |
50-60 |
|
Max. Aggregate Diameter |
60/40 |
60/40 |
80/60 |
80/60 |
80/60 |
|
Total Weight (kg) |
1960 |
3780 |
4100 |
5500 |
9800 |
|
Feeding Capacity (L) |
560 |
560 |
800 |
1200 |
1600 |
|
Mixing Motor Power (kw) |
5.5 |
15 |
18.5 |
2×15 |
2×18.5 |
|
Discharging Height (m) |
|
|
|
|
|
|
Outline Dimension (mm) |
2900*2220*2658 |
2580*2480*2151 |
2786*2480*2151 |
3636*2610*2895 |
2980*2140*1980 |
